8022

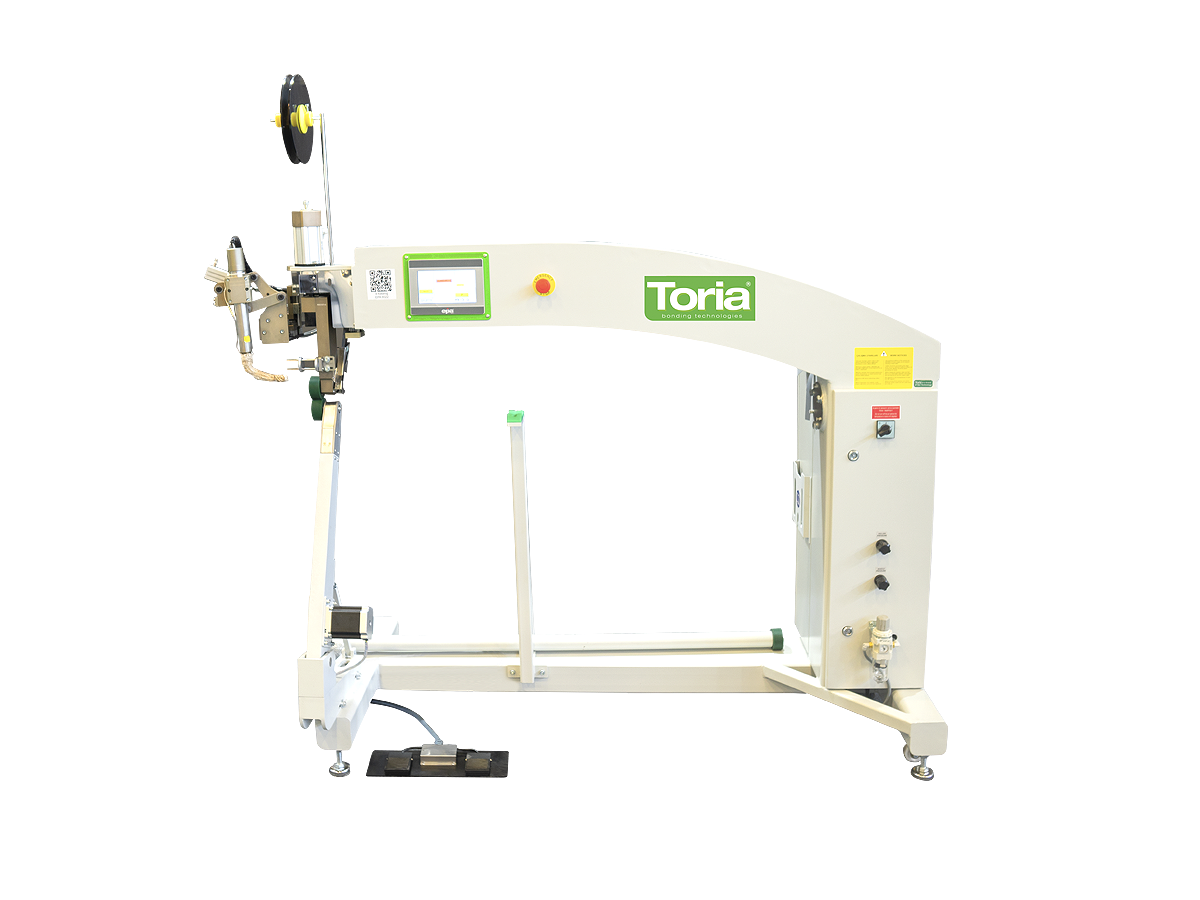

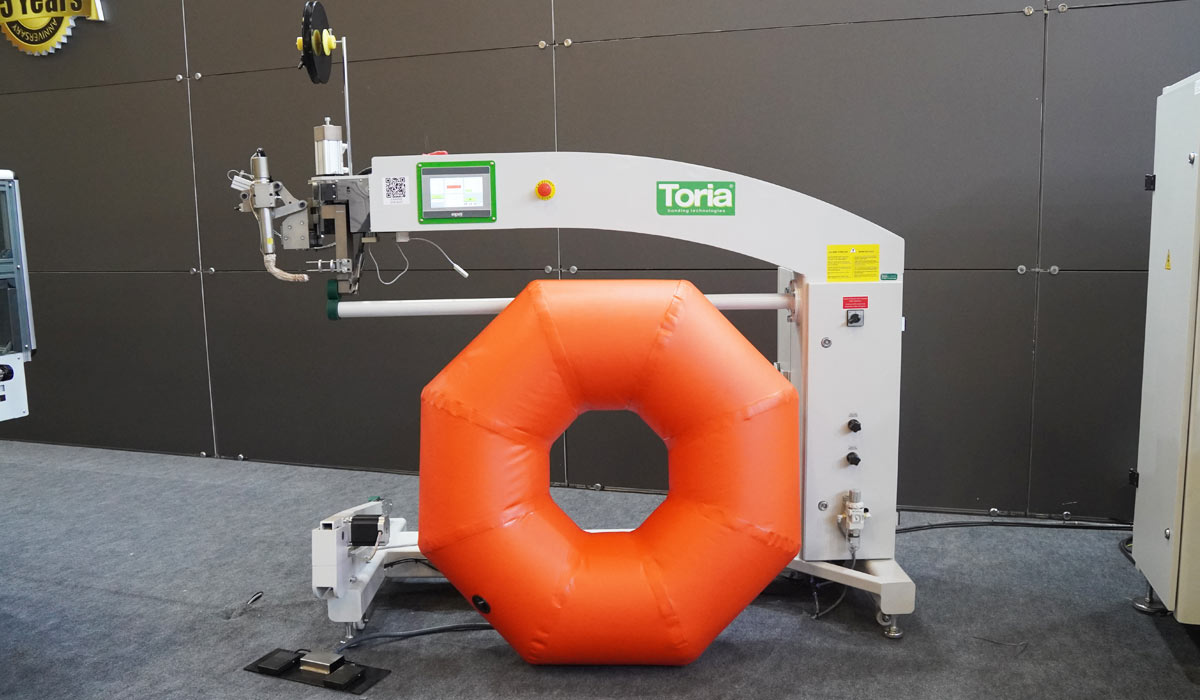

Hot Air PVC Welding Machine for Inflatable Boats and Tents


Hot Air PVC Welding Machine for Inflatable Boats and Tents Video

SPECIFICATIONS

  • Excellent results on all kinds of fabrics, especially PVC and its derivatives. Super results in inflatable boat PVC welding applications.
  • Air and waterproof bonding applications for demanding applications. Three different apparatus that can be adjusted independently of each other; Circle closure, side closure, strip apparatus
  • Multiple program structure adjustable thanks to the touch screen, 10 different recipes, each of which speed, temperature and time parameters can be adjusted differently
  • The speed of the lower / upper differentials can be adjusted automatically independently of each other. Adjustable band slots
  • High-tech resistance that can be adjusted up to 550°C and reacts quickly. Lossless and precise temperature measurement by measuring the heat from the air outlet.
  • High-tech alarm and information system. Digitally visible pressure level on the screen. Easy adaptation to the products thanks to the sensitive adjustable pressure setting.

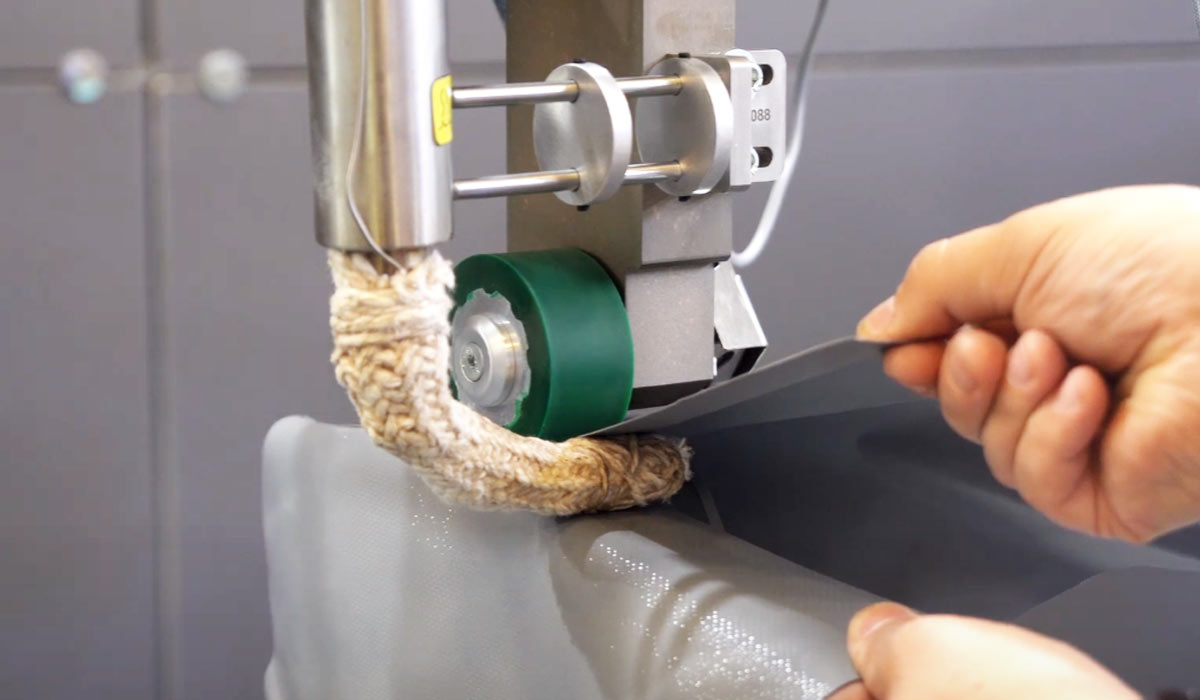

  • 3 axis adjustable hot air nozzle. Interchangeable pressure wheels and nozzle tip between 25mm-80mm
  • The machine is plc controlled.
  • The machine has CE certificate
Product IDToria 8022
Power4.100 watt
Voltage220V-50Hz
Air Pressure2-6 bar
Speed10 m/min
Weight320 kg
Size700x1720x1850 mm
Max Temp550 C
