Sleeve Placket Creasing Machine


Sleeve Placket Creasing Machine VIDEO

MACHINE FEATURES

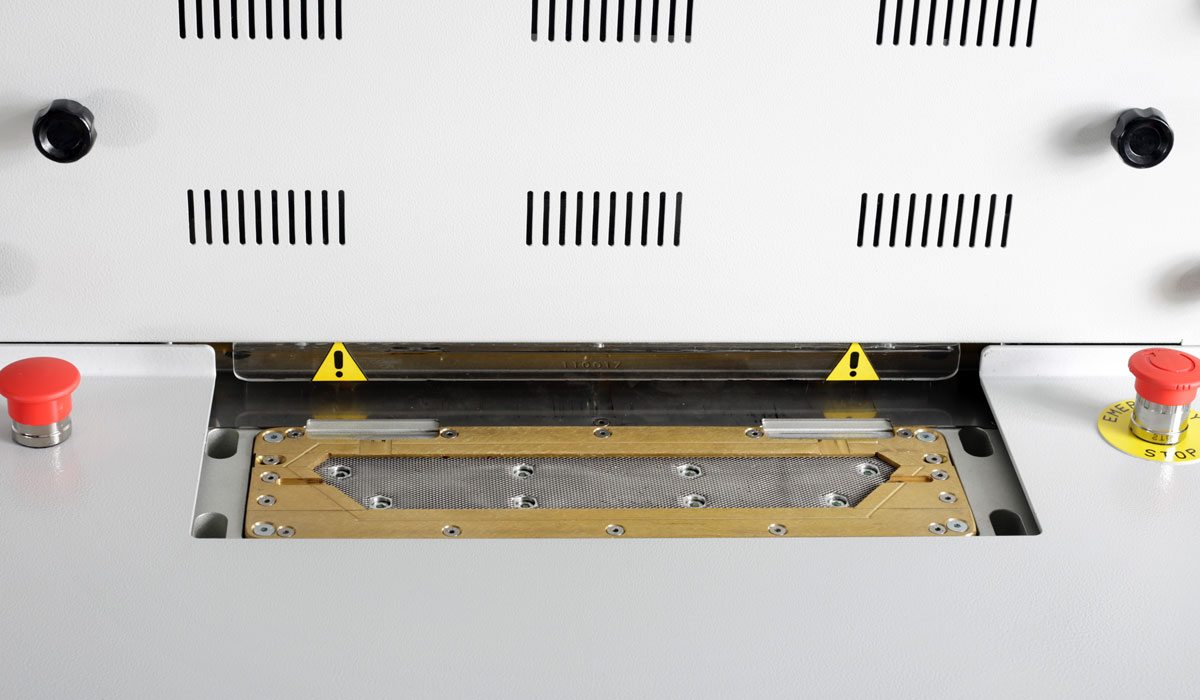

  • Sleeve Placket Creasing Machine presses sleeve plackets, bindings, and shirt side seams in desired sizes
  • Our Sleeve Placket Creasing Machine is capable of pressing triangle and square labels, plus yoke labels
  • Adjustable trace needles speed up and standardize production during assembly stage
  • Seam allowances can be set as desired
  • Sleeve Placket Creasing Machine features an Oil-free operation system

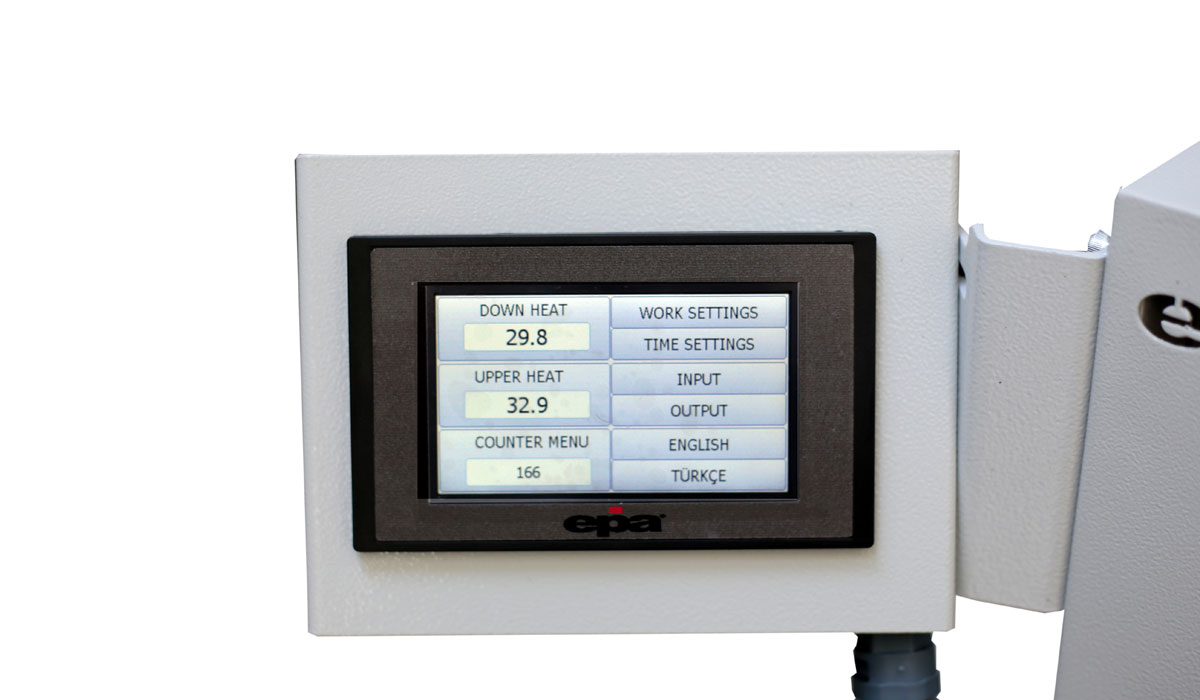

  • Easy to use digital display
  • Digital screen provides hourly and daily production reports
  • Smart- fault notification system of Sleeve Placket Creasing Machine enables easy detection of machinery malfunctions, trackable using the screen
  • Laser attachment provides easy stripe tracing, leading to excellent results during pressing of striped fabrics
  • Automatic stacking system
  • Unique resistances and computerized temperature control system of Sleeve Placket Creasing Machine provides precise heat adjustment and energy savings
  • PLC (Programmable Logic Control) controlled machine
  • A number of safety precautions protect the operator
  • Sleeve Placket Creasing Machine has a CE certificate
Product IDEPA 740-24
Size1450 x 1580 x 1370 mm
Weight900 kg
Electricity380 V
Power6 kW
Capacity300 pcs/hr
Compressed Air6-8 bar
Air Consumption254 nl/min
