SHIRT MACHINES

FOR EXCLUSIVE GARMENTS

724

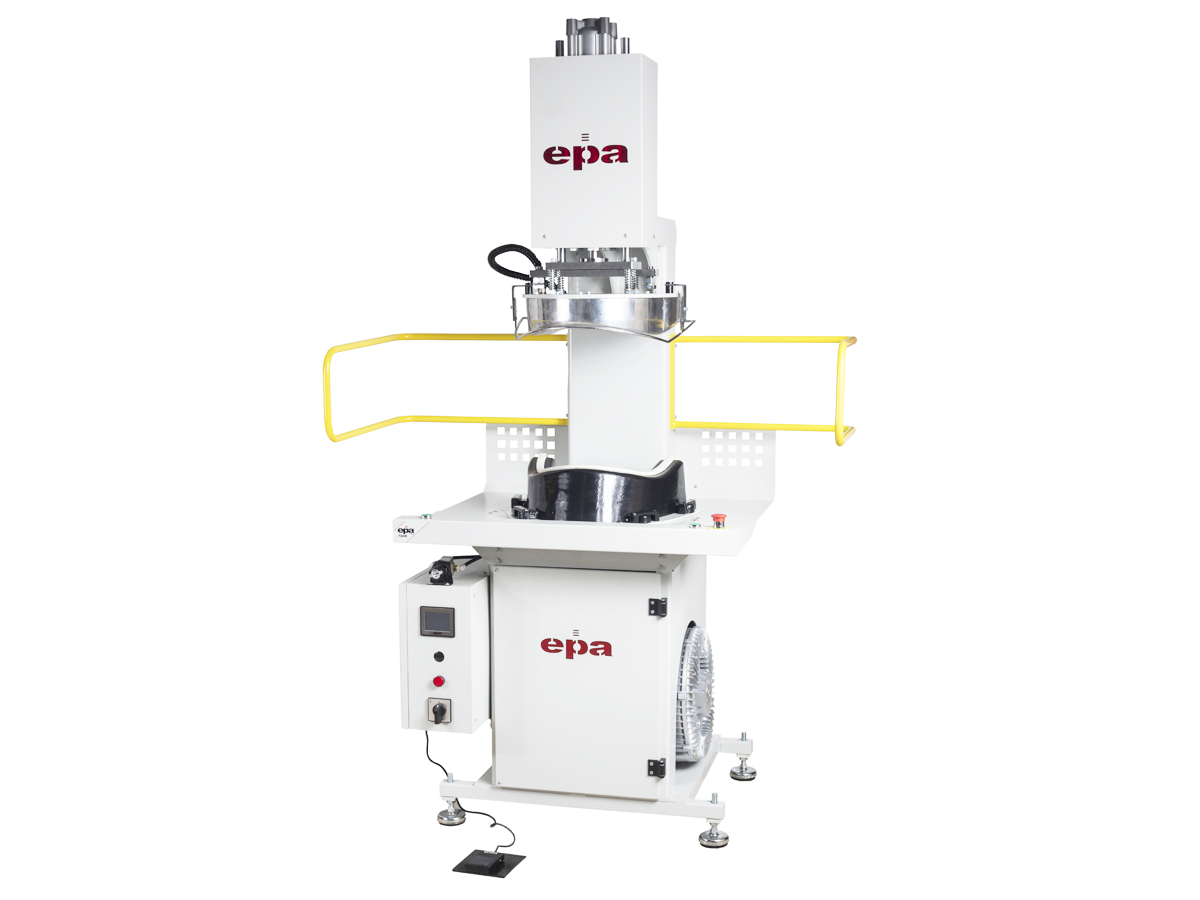

Shirt Arm Hole Press

Pressing Machines For Shirts
Shirt Arm Hole Press
Shirt Arm Hole Press
Shirt Arm Hole Press

Shirt Arm Hole Press VIDEO

SPECIFICATIONS

  • Presses seams over the sleeves and allows them to get the perfect form
  • Shirt Arm Hole Press fuses the interlinings inside the seams over the sleeves

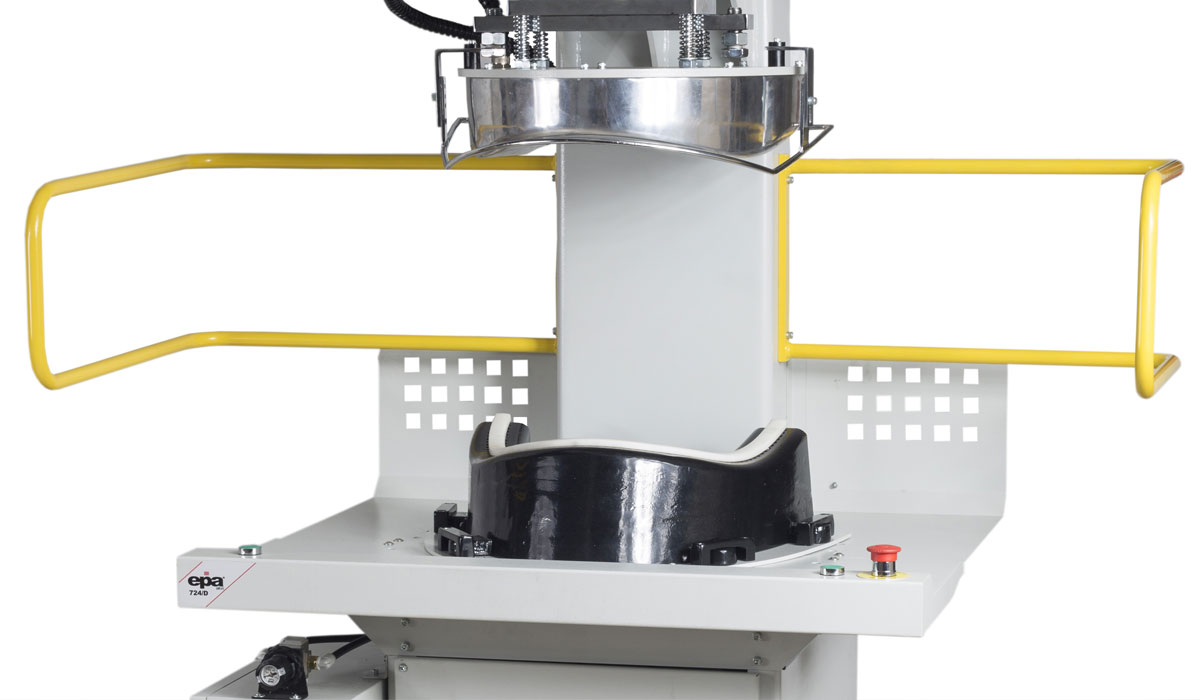

  • Adapts perfectly to shirt boss seams with specially designed upper and lower moulds
  • Specially designed upper and lower moulds prevent slipping of the seams during pressing
  • Shirt Arm Hole Press has a high-vacuum lower mould
  • Pressing heat and timing can be adjusted according to the materials that will be pressed
  • Vacuum motor installed inside the Shirt Arm Hole Press machine with high vacuum producing capacity
  • Vacuumed cooling system
  • Specially designed resistors and upper pressing head allow equal heat diffusion on pressing area

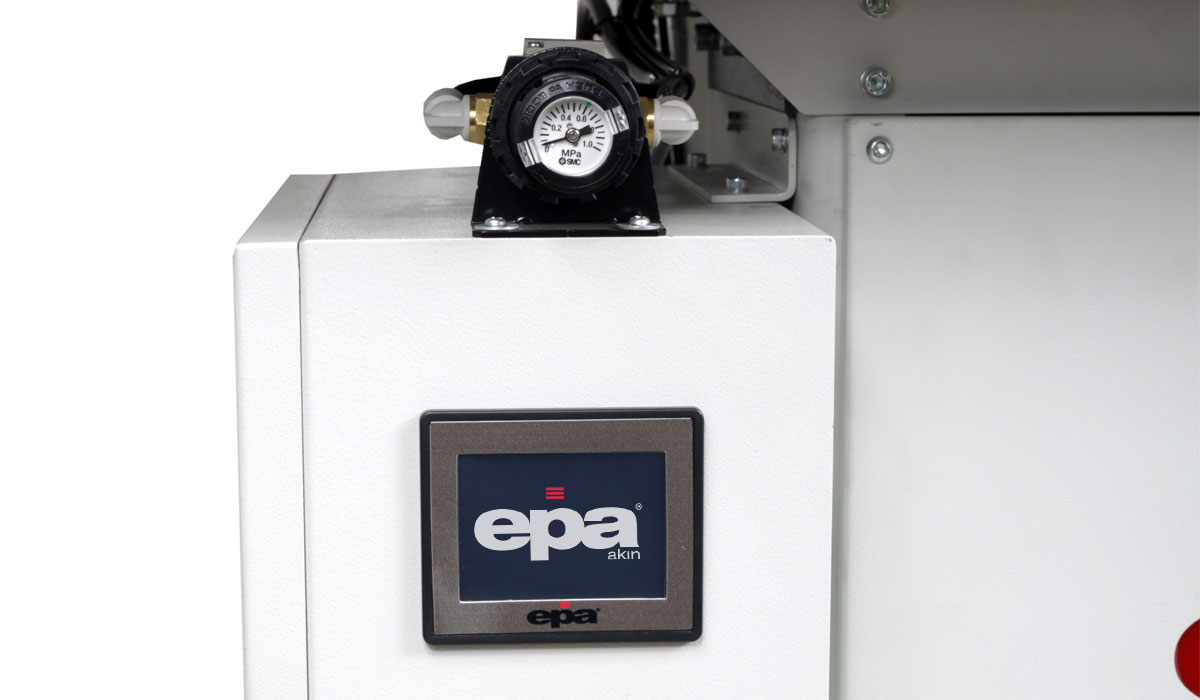

  • Easy to use digital display
  • Digital screen provides hourly and daily production reports
  • Smart-fault notification system enables easy detection of machinery malfunctions, trackable using the screen
  • Unique resistors and computerized temperature control system of our Shirt Arm Hole Press provides precise heat adjustment and energy savings
  • PLC (Programmable Logic Control) controlled machine
  • A number of safety precautions protect the operator
  • Shirt Arm Hole Press has a CE certificate
  • EPA 724
  • 700x1200x1900
  • 245 kg
  • 380 V
  • 5 kW
  • 150 pcs/hr
  • 6-7 bar
  • 130 nl/min
